Arasan’s MIPI® D-PHY compliant to the MIPI D-PHY Specification v2.1 supports:
This specification is primarily intended to define a solution for a bit-data rate range of:
80 to 1500 Mbps per Lane without de-skew calibration
up to 2500 Mbps with de-skew calibration,
up to 4500 Mbps with equalization.
When the DUT implementation supports a data rate greater than 1500 Mbps, it shall also support de-skew capability. When a PHY implementation supports a data rate more than 2500 Mbps, it shall also support equalization, and Spread Spectrum Clocking shall be available.
Arasan D-PHY IP Core is seamlessly integrated with Arasan’s MIPI CSI IP and DSI IP Controller Cores.
Arasan offers industry’s broadest portfolio of foundry and process technology support for MIPI D-PHY. The MIPI D-PHY IP is available in foundry processes spanning 7nm to 180nm. Arasan specializes in porting Analog Transceiver IP Cores to new foundry processes.

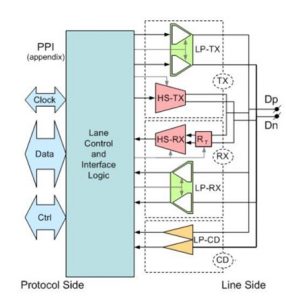

Arasan’s MIPI® D-PHY IP Core is fully compliant to the D-PHY specification version 2.1. It provides a point to point connection between master and slave or host and device that comply with a relevant MIPI®
Compliant to MIPI® Alliance Standard for D-PHY specification Version 2.1
Supports D-PHY 1.1 synchronous transfer mode at high speed mode with a bit rate of 80-1500 Mb/s without deskew calibration
Supports DPHY 1.2 for 1500 – 2500 Mb/s with deskew calibration.
Supports DPHY 2.1 for 2500 – 4500 Mb/s with deskew calibration.
Asynchronous transfer at low power mode with a bit rate of 10 Mb/s
Spaced one hot encoding for Low power [LP] data
One clock lane and four data lanes
On-chip clock generation configurable for either transmitter or a receiver
Clock lane supports unidirectional communication
On-chip clock generation configurable for either receiver
Data lanes support transfer of data in high speed mode.
Features include ultralow power mode, high speed mode and control mode.
Has clock divider unit to generate clock for parallel data transmission from and to the PPI
Supports standard PHY receiver and PPI interface compliant to MIPI Specification
Testability for Analog Rx with DLL and DFE.
Supports High speed mode in Forward communication and for Stuck-At Scan for Digital Testing
Runs off 0.8V+/-10%, 1.2V+/-10%, 1.8V +/- 10% supply
Has inbuilt calibration to calibrate RX impedance. Also, can manipulate those impedance manually through trim registers
Supports polarity swap
Physical Abstract Models (LEF)
Timing Models (LIB)
Process Specific Integration Guide
Silicon proven, fully compliant core
Extensive Quality Methodology
Premier direct support from Arasan IP core designers
